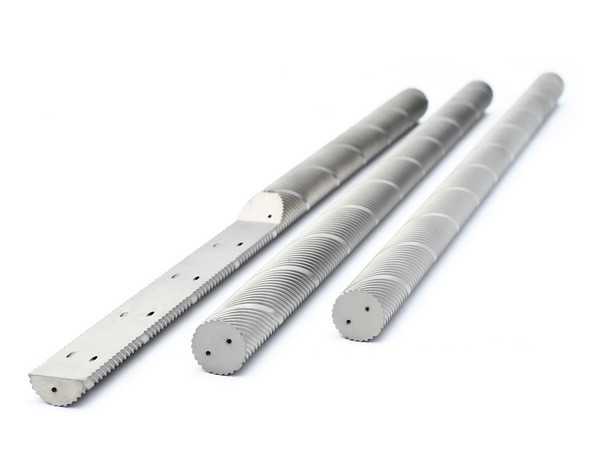

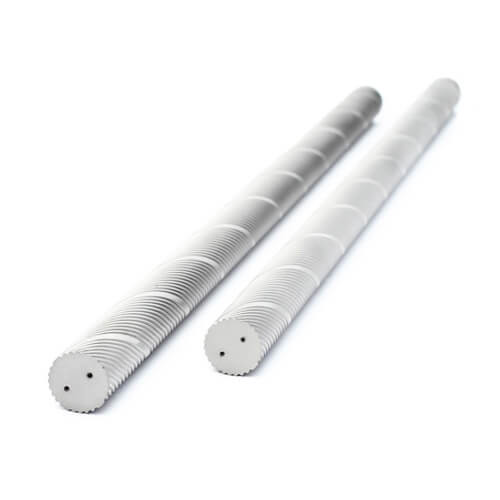

दो हेलिक्स कूलेंट छेद के साथ Sintered ठोस सीमेंट कार्बाइड रॉड
| unground | ग्राउंड एच 6 | एल Tol। 5.0 | टी | Tol। | घ | Tol। | पिच | |
डी | Tol। | |||||||
| 6.3 | + 0.4 / + 1.0 | 6.0 | 330 | 2.7 | ± 0.2 | 0.80 | ± 0.15 | 32.65 |
| 7.3 | 7.0 | 330 | 3.5 | 1.00 | 38.09 | |||
| 8.3 | 8.0 | 330 | 3.4 | 1.00 | 43.53 | |||
| 9.3 | 9.0 | 330 | 4.5 | ± 0.3 | 1.40 | 48.97 | ||
| 10.3 | 10.0 | 330 | 4.8 | 1.30 | 54.41 | |||
| 11.3 | + 0.4 / + 1.2 | 11.0 | 330 | 4.9 | ± 0.4 | 1.40 | 59.86 | |
| 12.3 | 12.0 | 330 | 6.3 | 1.70 | 65.30 | |||
| 13.3 | 13.0 | 330 | 6.1 | 1.75 | ± 0.20 | 70.74 | ||
| 14.3 | 14.0 | 330 | 6.7 | 1.80 | 76.18 | |||
| 15.3 | 15.0 | 330 | 7.3 | 1.75 | 81.82 | |||
| 16.3 | + 0.4 / + 1.4 | 16.0 | 330 | 8.0 | 2.00 | 87.06 | ||
| 17.3 | 17.0 | 330 | 8.5 | 1.75 | ± 0.25 | 92.50 | ||
| 18.3 | 18.0 | 330 | 9.0 | 2.30 | 97.95 | |||
| 19.3 | 19.0 | 330 | 9.7 | 2.00 | 103.39 | |||
| 20.3 | 20.0 | 330 | 10.0 | ± 0.5 | 2.50 | 108.83 | ||
